Highlights of this design

World-class Drivers

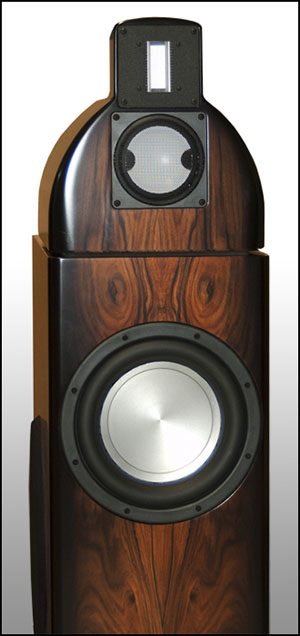

From the incomparable RAAL ribbon tweeter to the ceramic Accuton midrange to a powerful 10" woofer and dual 12" passives, the drivers used in this design are among the very best the industry currently offers.

Dual Passive Radiators

Generating the deepest bass in the system, four passive radiators (two in each cabinet) load the room very evenly with deep bass. And since there are no rear ports, there is no port noise and the speakers are easier to place in the room.

Open Back Midrange

Use wide open, partially stuffed or closed off to control the amount of ambience to suit your taste, your music and your room. The result is an extremely wide soundstage for symphonies or pinpoint imaging for intimate jazz vocals...you choose what's right for you.

Detail and Resolution

The SS 10's deliver the ultimate in detail and resolution. You will hear detail in the music you never knew was there. If it's in the music, you'll hear it...from 22Hz to beyond audibility.

Frequency Response

Extreme Accuracy

Flat Response

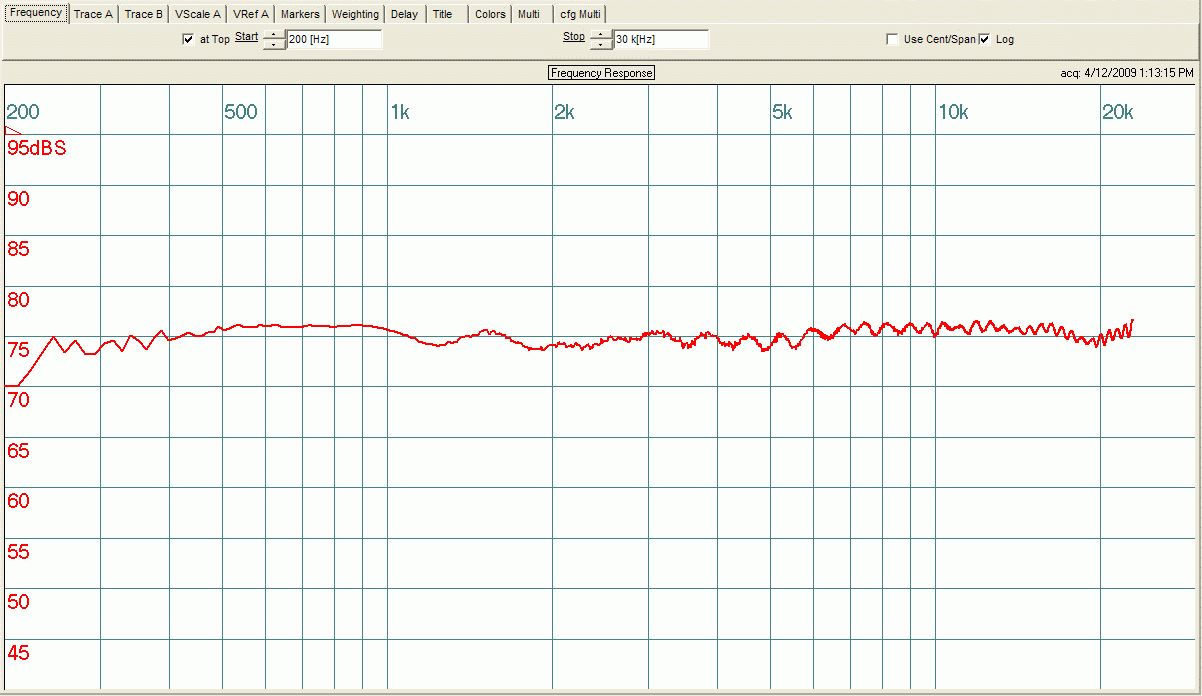

As you can see in this frequency response plot, the SS 10 design is extremely accurate with ruler flat response. You will hear the music EXACTLY as it was produced.

Phase Coherent

In addition to flat frequency response, the SS 10 design is phase coherent in the crossover regions resulting in a speaker that images exceptionally well.

SS 10

Specifications




Model SS 10
Design 3-way
passive radiator
Tweeter RAAL ribbon
Midrange Accuton midrange
Woofer Custom 10 inch
Dual 12 inch
passive radiators
Response +/- 3db 22Hz - 40kHz
Sensitivity 84 dB
Impedance 8
Amplification 200 watts
Alignment Passive Radiators
Dimensions 12 W x 23 D x 42 H
Weight 130 pounds
Price$11995 per pair in black satin or white finish

$11995 per pair in a standard veneer **

Custom veneer or automotive finishes quoted on request.
* All dimensions in inches.
** Standard finishes include curly maple, curly cherry, curly walnut, oak and straight mahogany. Wood veneers can also be dyed. So, for example, you can have deep rose-red curly cherry or electric blue curly maple. See gallery for examples.
