Stunning Realism in a 2-way MTM
high-definition
transmission line reference speaker |
Veracity HT2-TL
specifications
| |
Model
|
Veracity HT2-TL
|
|
| |
Design |
MTM 2-way TL |
|
| |
Drivers |
(1) LCY pure ribbon
tweeter and (2) Seas Excel W18 midrange
|
|
| |
Response |
45Hz - 25KHz (+ .5/-
2db)
32Hz - 60KHz (+/-3db) |
|
| |
Sensitivity
(dB/2.83v/1M) |
87db |
|
| |
Impedance
(nominal) |
4 ohms |
|
| |
Recommended
Amplification |
30 - 150 tube
watts
80 -250 solid state watts |
|
| |
Box Alignment
|
quarter wave tube
transmission line |
|
| |
Dimensions
(HWD) |
44 1/2" H x 9" W x
17" D in 1" MDF
44 1/2" H x 9" W x 14" D in 3/4" MDF
(not including
plinth or spikes) |
|
|
|

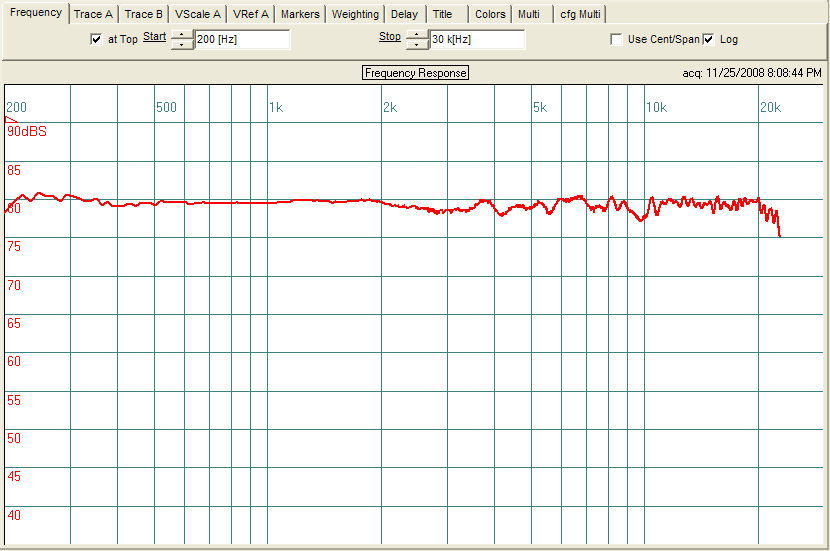

On-axis Frequency Reponse
|
|

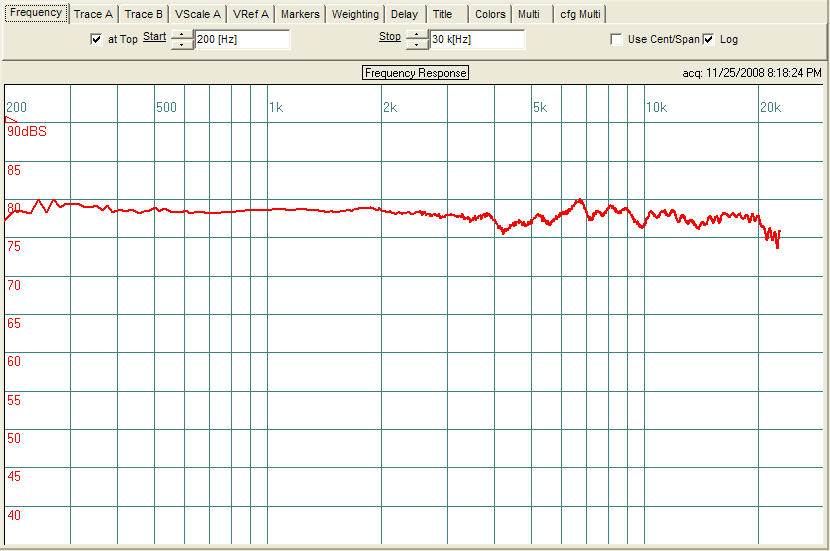

30 degress off-axis Frequency
Reponse
|
|
Reverse Null
|
|
|
