Model
 |
SongTower QWT
|
|
| |
Design |
MTM 2-way Quarter Wave Tube Transmission Line |
|
| |
Drivers |
(1) Hiquphon OW2 tweeter , (2) Seas CA15RLY
midwoofers |
|
| |

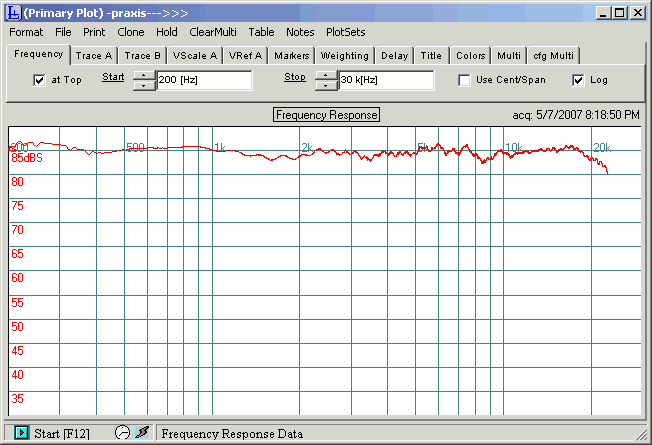

Response |
42Hz - 20KHz (+/- 3db)
|
|
| |
Sensitivity
(dB/2.83v/1M) |
88db |
|
| |
Impedance |
4 ohms nominal
6 ohms average |
|
| |
Recommended Amplification |
30 - 150 tube watts
80 -250 solid state
watts |
|
| |
Box Alignment |
Quarter-wave transmission line |
|
| |
Weight |
49 pounds each
(not including plinths and
spikes) |
|
| |
Dimensions
(HWD) |
44.5" H x 8" W x 12" D
(not including plinths
and spikes) |
|
